Postive Displacement Blowers & Vacuum Pumps
Twin Lobe Design & Tri Lobe Design
IRH Series
More Than Air, Peace of Mind
Ingersoll Rand is well into its second century of building our legacy as a trusted global leader by delivering the innovative solutions and expertise to customers require. We continue to advance compressed air technology and service to maximize reliability, efficiency and productivity for our customers. We not only provide world-class products and support, but the peace of mind that comes from our commitment to stand behind our customers in all aspects of what we do. That peace of mind allows our customers to focus on their primary objective: moving their businesses forward
IRH Series Blowers : Twin Lobe Design
Benefits
• High mechanical and volumetric efficiency
• Reliability in operation
• Air cooled, oil free operation
• Fast and easy maintenance
• Dynamically balanced impellers
• Detachable feet allow for vertical or horizontal flow
• Clockwise or counter-clockwise rotation
• Direct drive or V-belt drive available throughout the
operating range
Range
Range of positive displacement blowers featuring
two lobes for use in compression and vacuum for air
or neutral gases. Pressure up to 1 bar (14.5 psig)
Vacuum up to 540 mbar (16 “Hg)
Application
Thousands of international installations of
Ingersoll Rand blowers are proof of their reliability
and strength, providing universal solutions in
wide-ranging applications such as:
- Water Treatment
- Sewage Treatment
- Biogas
- Cement
- Coal
- Textile
- Power
- Pneumatic Conveying
- Chemical
- Petrochemical
- Pharma
- Food Processng
- Sugar
- Metal Industries
- Paper
- Glass
- Plastics
- Truck (Vacuum Applications)
IRH Series Techincal Specifications
Bore: 25NB TO 200NB (1″ TO 8″)
PRESSURE: 1000mmWC to 7000mmWC (Air cooled) 8000mmWC to 10000mmWC (Water cooled)
HORSE POWER: 0.5HP to 75HP (0.37kW to 55kW)
CAPACITY: 26 to 2786 m³/hr

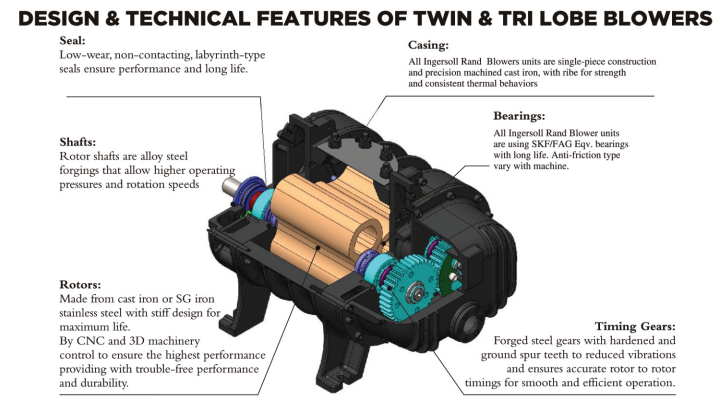

Features
1. Twin Lobe Design
2. Four Bearings standard with drive shaft suitable for
V-belt drive & direct drives
3. Bearing Life: 50,000 hours

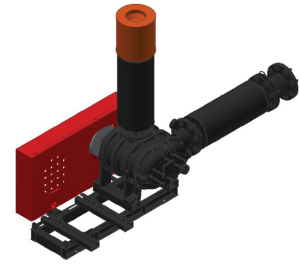

4. Blower Packages include high efficiency
reactive type silencers
5. Blower Package includes high efficiency
suction filter & silencer

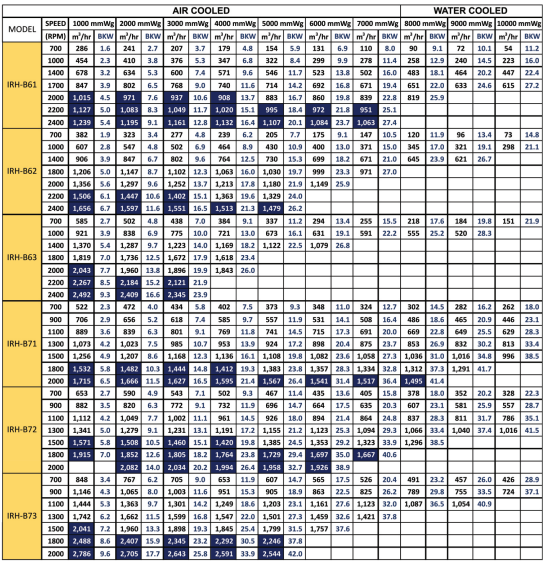

Technical Data for IRH Series
*Blue cells for FAD indicate next higher standard line size recommended.
